Gen2+ Military Night Vision Binocular Goggles
Gen2+ Military Night Vision Binocular Goggles
SPECIFICATIONS
Type: Binoculars
Water Resistance Level: IPX6
Lens Coating Description: FMC
Prism Description: BAK4
Size: 118X48X69mm
Magnification: 4X
Effective Visual Distance: 600m
Battery: CR123
Diopter: +5/-5
Exit Pupil Diameter: 45-53lp/mm
Exit Pupil Distance: 7mm
Objective Diameter: 24mm

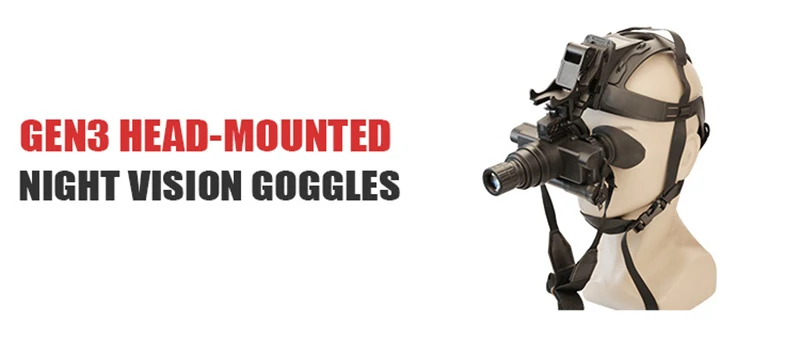

Type: Head Mounted Night Vision Binoculars
Gen 2+ Night Vision Military Binocular Goggles HD High Magnification Infrared Records Tactical Head Mounted for Outdoor Hunting
DE-OHB-Y is "single tube, dual eye" one of the night vision infrared system goggle in industry. Fully adjustable, padded headgear allows the device to be flipped-up or quickly detached from the mask. Optional 3X or 5X magnification multicoated lens will convert this device into a high performance long range binoculars. They're lightweight, fully submersible, rugged, precisely built and easy to use. This model is able to accommodate both AA and CR123 batteries without any accessories.
Features
1. IP66 weatherproof: The device can prevent the domestic water.

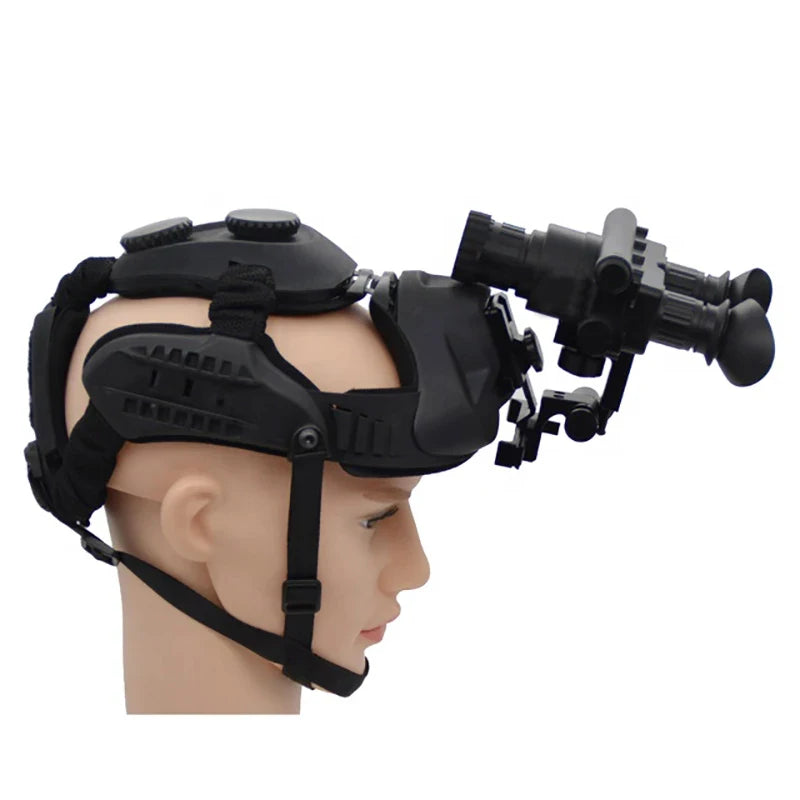

2. Automatic shut off when flipped up: The device will turn off automatically when pushing a button on the side of mount and lifting the unit up until reaches in the top position. Push the same button to lower monocular to the viewing position, then the device will turn on for continuation of operation.
3. No power consumption when in standby: It means no power consumption in case you forget to remove the battery for some days.
4. Embedded spring in battery's cap: It makes screwing the cap easier and better protects the spring and contact with the battery.

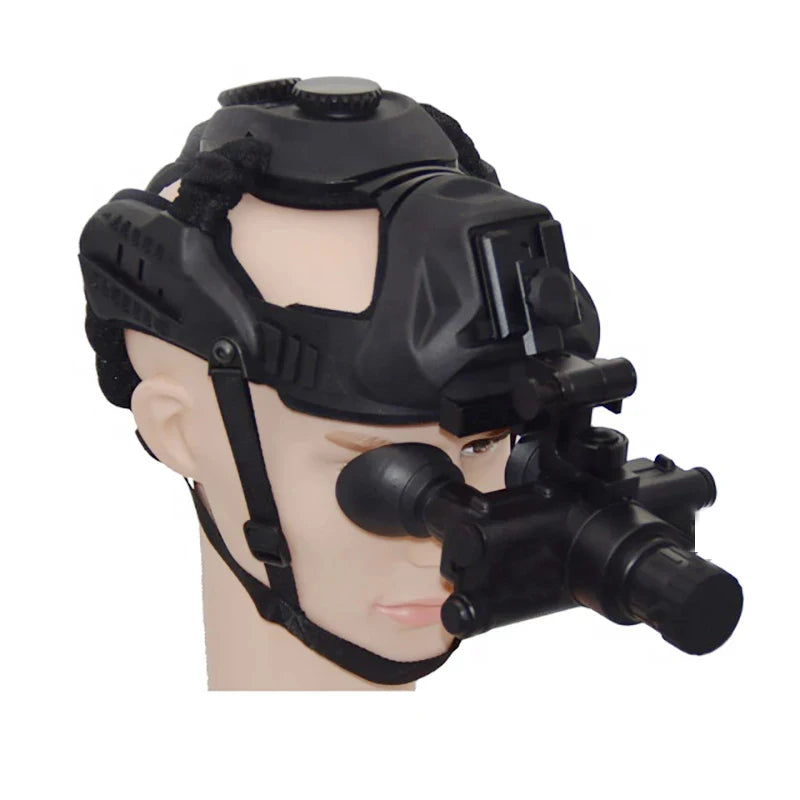

5. Fully adjustable head mount: The head mount can be adjusted according to head size.
6. Mil-spec multi-coated optic: Multi antireflection film can restrain the reflex of lens, which can reduce the loss of light so more light can go though the lens to get a sharp image.
7. Automatic brightness control: When the ambient light changes, the brightness of the image detected will keep the same to insure a stable viewing effect and also to protect users' eyesight.
8. Bright source protection: The device will shut off automatically in 10 seconds to avoid the damage of the image intensifier tube when the ambient light exceeds 40 Lux.
9. Low battery indication: A greenish light in the edge of eyepiece will start flickering when the battery is running low.
Product Description

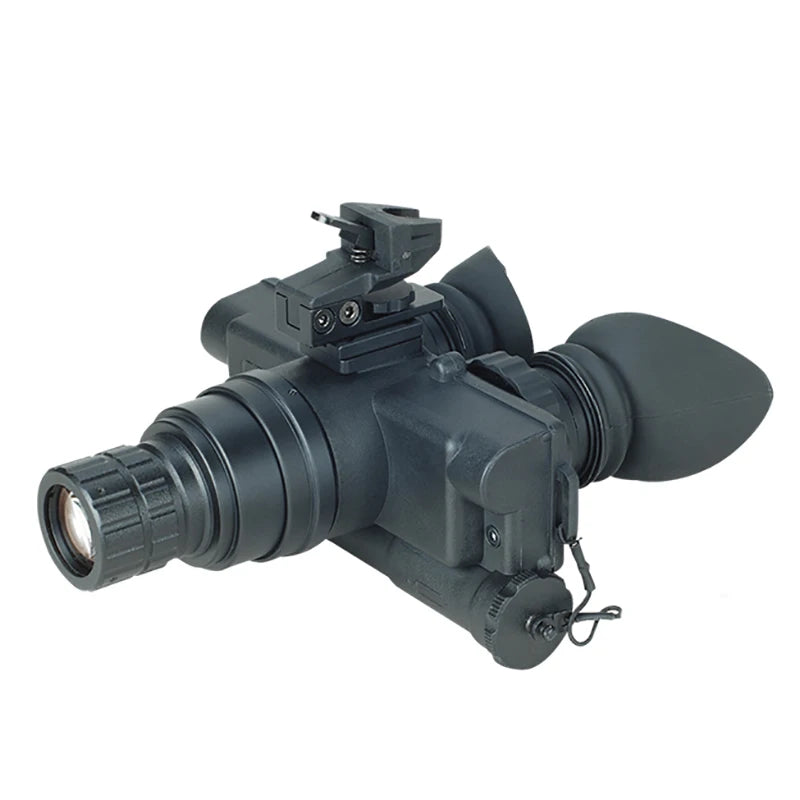

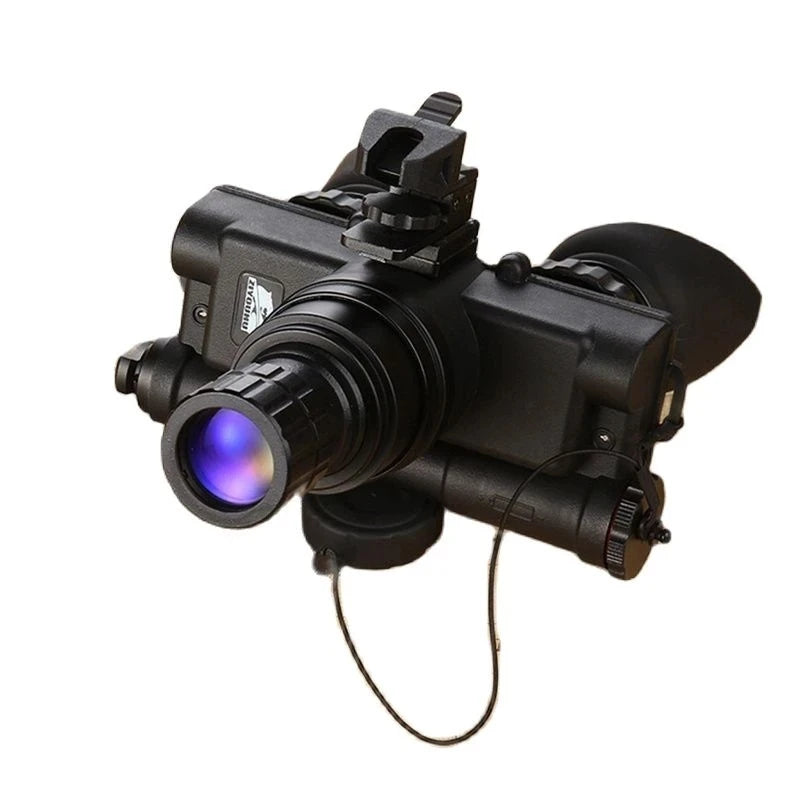

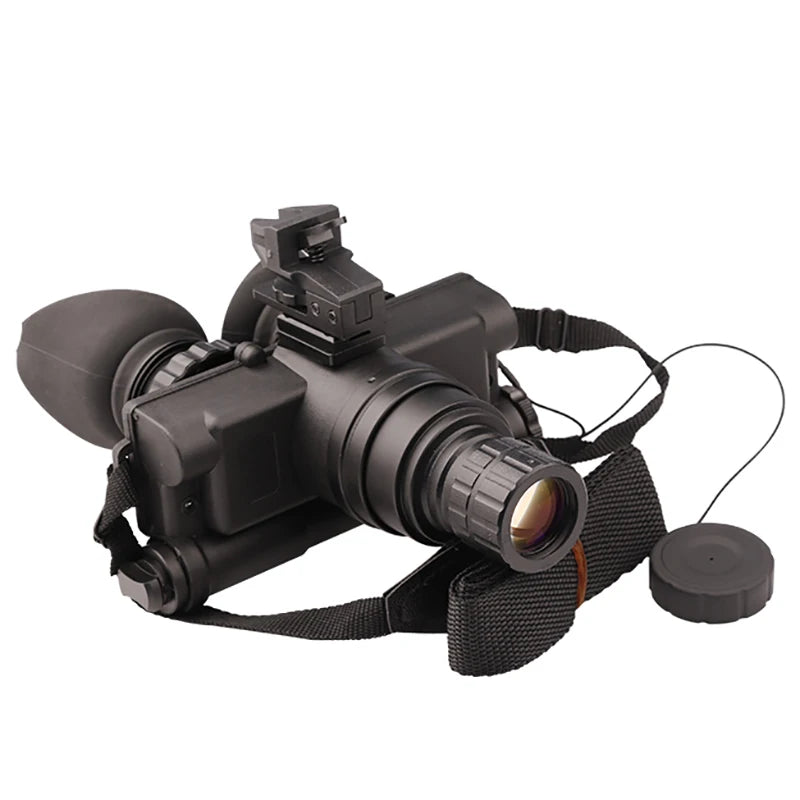

Gen2+/3 helmet mounted binocular night vision infrared military tactical goggles adopts Gen2+ / Gen3 high resolution image intensifier tube with the function of anti-glare and built-in IR illuminator, it can cut through total darkness to observe and mainly used for military observation, sea defense, frontier reconnaissance, drug smuggling investigation, vehicles and aircraft maintenance etc.

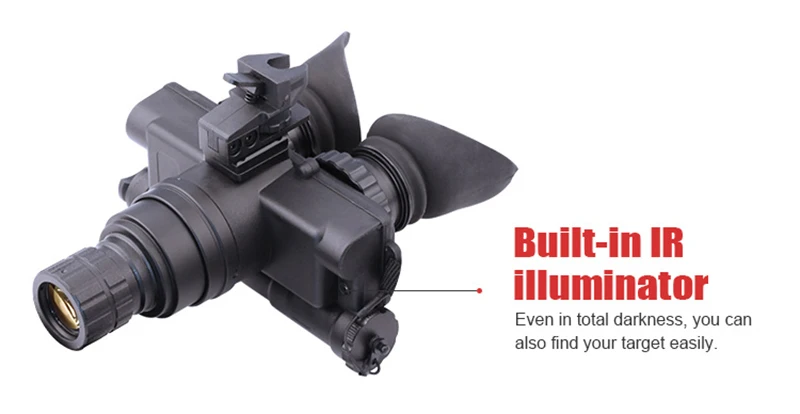

Advantage 1: Gen2+/3 helmet mounted binocular night vision infrared military tactical goggles has the function of built-in IR illuminator.
Advantage 2: When you use the helmet mounted binocular night vision infrared military tactical goggles in strong light environment, the bright flash protection function will automatically stop the night vision goggles working , and protect your device from damage.

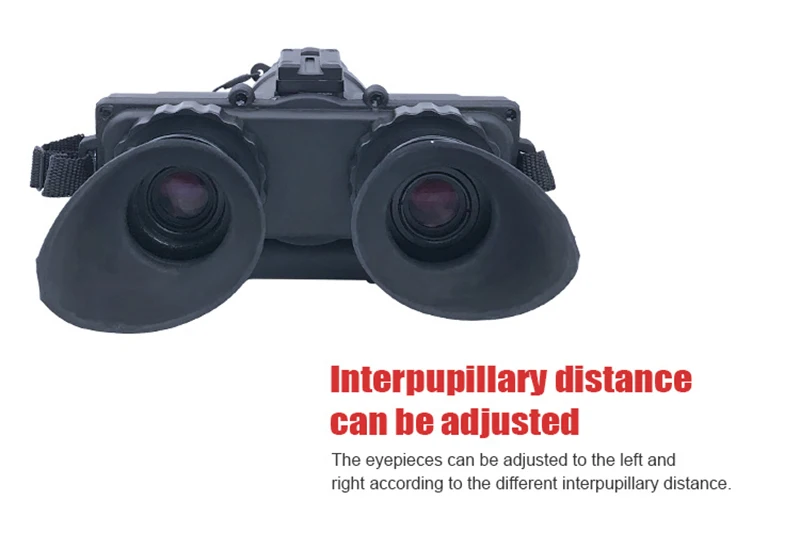

Advantage 3: The interpupillary distance of helmet mounted binocular night vision infrared military tactical goggles is adjustable. So it enables a comfortable experience to users.

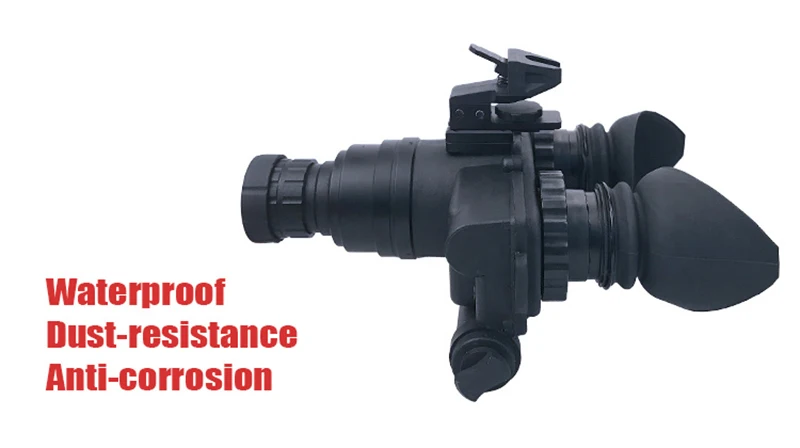

Advantage 4: Gen2+/3 helmet mounted binocular night vision infrared military tactical goggles is waterproof, corrosion and dust-resistance. So you can use it in complex and extremely bad weather. It can be widely used in military activity.

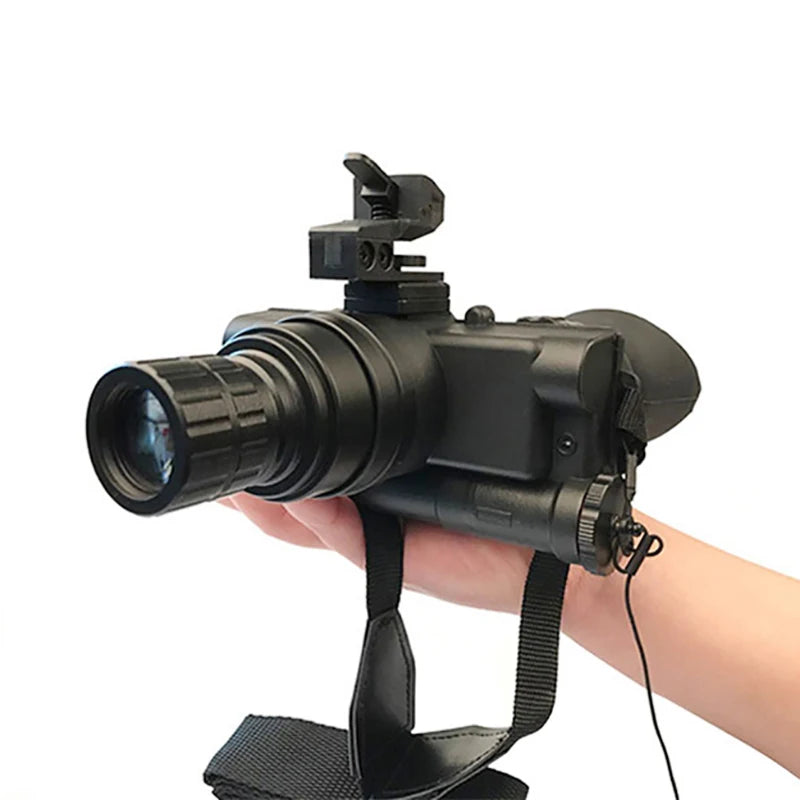

Advantage 5: Multipurpose functions of helmet mounted binocular night vision infrared military tactical goggles support it not only can be handheld or head-mounted but also can be mounted with helmet.
Specification
Magnification : 1x / 3x / 5x / 8x zoom
Resolution ( LP/MM): more than 72 (US standard HTP FOM 1250)
Visual Distance(m) : more than 240
Code recognition range :180 meter
Field angle (degree) : 40 +/ -2
Focusing range (m) : 0.3 - infinity
Range of accommodation : -5 , +5
Power supply voltage(v): AA 1.5V
Objective focal length(mm): 27
Objective aperture(mm): 24
Outlet diameter(mm): 20
Exit pupil diameter(mm) : 7
Exit pupil distance(mm) 23
Working temperature(degree centigrade): -40 to +50
Storage temperature(degree centigrade) : -50 to +60
Size(mm): 178 x 112 x 62
Weight (kg): 0.48
Operating time( close infrared) : 60 h
Operating time ( Open Infrared) : 40 h
